| 브랜드 이름: | SZSSTH/OEM |
| 모델 번호: | 라 |
| MOQ: | 1 피스 |
| 가격: | USD$175.00-193.00/pieces |

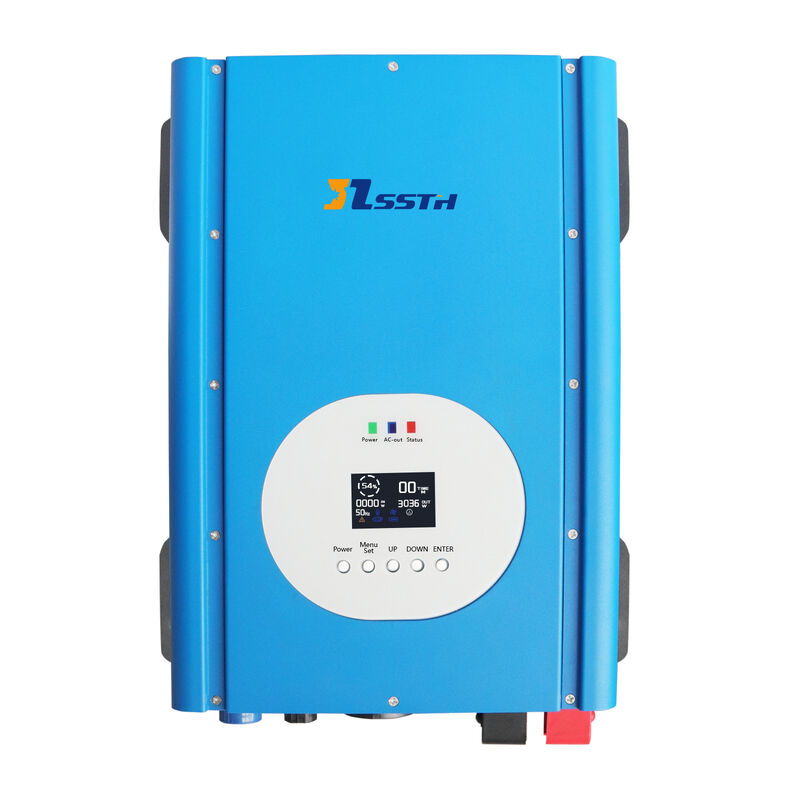

This 3000W bi-directional power inverter combines high-efficiency energy conversion with a built-in 100A battery charger, making it ideal for solar systems, home backup, RVs, and off-grid applications.
| Attribute | Value |
|---|---|
| Network | SDK |
| Type | DC/AC Inverters |
| Weight | 6.1KG |
| Charging Method | Constant current/constant voltage (CC/Cv) |
| Cooling Method | Air Cooling |
| Operating Temperature | -10℃~+45℃ |
| Warranty | 12 Months |
| Rated Power | 3000W (6000W surge) |
| Input Voltage | 12V DC |
| Output Voltage | 220V AC (Pure Sine Wave) |
| Charging Current | 100A (Adjustable) |
| Efficiency | >90% |
| Protections | Overload/Short-Circuit/Overheat/Low Voltage |
| Cooling | Silent fan (temperature-controlled) |
| Voltage Range | 180~264VAC |
| Frequency Range | 47-63HZ |
| Maximum Efficiency | ≥91% @220VAC |
| Maximum Current | 15Amax |
| PF value | ≥0.95 |
| Surge Current | ＜60ACold Start |
| Rated Voltage | 13.2V (maximum charging voltage 14.8V) |
| Rated Current | 100A |
| Maximum Power | 1400W |
| Voltage Accuracy | ±0.8V |
| Current Accuracy | ≤8% |
| Load Regulation | ≤5% |
| Dynamic Load Regulation | ≤5% |
| Battery Charging Voltage | 10.5V-14.5V |
